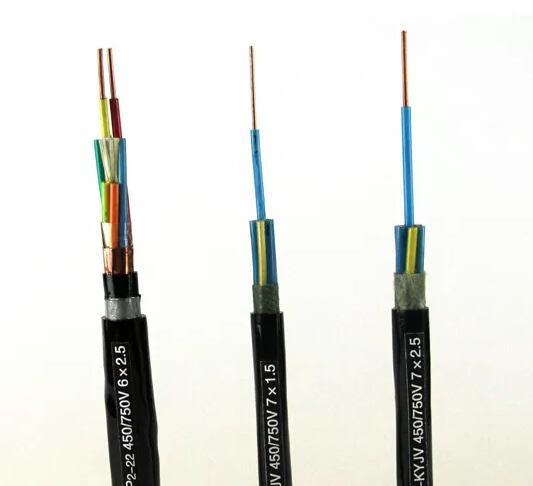

Control wire steel tape armored cable copper tape shielding environmental protection

Descriptions:Conductor: Solid or Stranded Copper ConductorInsualtion: PVCScreen: Copper TapeInner Sheath: PVCArmor: Steel TapeSheath: PVC Operating characteristics:Rated voltages U0/U: 450/750VPermissible Max. continuous operating temperature of conductor:PVC insulated: 70°CUpon short circuit (Max. Duration time 5s) the

Featured Products

Descriptions:

Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Screen: Copper Tape

Inner Sheath: PVC

Armor: Steel Tape

Sheath: PVC



Operating characteristics:

Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.



Application:

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.



Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates:

CE, RoHS, CCC, KEMA and more others at request



Why Choose SHAN CABLE:

Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

High quality cable product with competitive price;

OEM cable product

Custom design per specific cable requirements and budgets;

Fast and on-time delivery of cable;

Flexible business deal;

Chief cable engineer with over 40 years' experience;

Harmonious colleague and customer relationship;

All cable products 100% Inspection;

Comprehensive after-sale service.



Technology Data:

Cross-Sectional
Area mm2
Thickness of
Insulation mm
Thickness of Copper tape Screen
mm
Thickness of
Steel Tape mm
Thickness of
Sheath mm
Overall Diameter
mm
Min resistance of
insulation at
70ºC MΩ/km
Max.D.C resistance
of at 20ºC
MΩ/km
Approx Weight
(kg/km)
minmax
4x2.50.80.05-0.12x0.2(0.3)1.513.516.20.0017.41470
4x40.80.05-0.12x0.2(0.3)1.514.517.50.00854.61525
4x60.80.05-0.12x0.2(0.3)1.515.718.90.0073.08640
4x1010.05-0.12x0.2(0.3)1.719.523.60.00651.83970
5x2.50.80.05-0.12x0.2(0.3)1.514.417.30.0017.41526
5x40.80.05-0.12x0.2(0.3)1.515.518.70.00854.61606
5x60.80.05-0.12x0.2(0.3)1.716.820.30.0073.08757
5x1010.05-0.12x0.2(0.3)1.721.225.50.00651.831145
7x0.750.60.05-0.12x0.2(0.3)1.511.914.30.01224.5337
7x1.00.60.05-0.12x0.2(0.3)1.512.314.70.01118.1445
7x2.50.70.05-0.12x0.2(0.3)1.513.316.20.017.41574
7x40.80.05-0.12x0.2(0.3)1.515.318.50.00854.61723
7x60.80.05-0.12x0.2(0.3)1.718.121.80.0073.08930
7x1010.05-0.12x0.2(0.3)1.722.827.40.00651.831430
10x0.750.60.05-0.12x0.2(0.3)1.513.916.80.01224.5470
10x10.60.05-0.12x0.2(0.3)1.514.517.50.01118.1580
10x1.50.70.05-0.12x0.2(0.3)1.516.219.60.01112.1780
10x2.50.80.05-0.12x0.2(0.3)1.718.922.80.017.41986
10x40.80.05-0.12x0.2(0.3)1.720.624.90.00854.611256
10x60.80.05-0.12x0.2(0.3)1.722.627.20.0073.081589


Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection

Till now, TDDL has obtained a series of certifications covering ISO9001 quality management, ISO14001 environmental ,
management system certification, OHSAS18001 occupational health and safety management system, China CCC, PCCC,
CRCC, CE etc


.Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection


Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation:
Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more
than 30 years.

The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight
kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant
cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for
rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen,
irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS,
American ASTM, German DIN and others, on the basis of customers' requirements.

The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001
occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway
product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.

As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial
Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products,
widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to
more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous
praise from numerous customers.

Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental ProtectionControl Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection
    The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and
more than 70 countries and regions, and enjoys a certain reputation among users.

Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection
